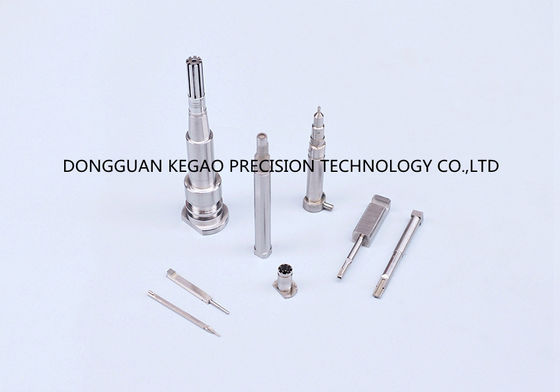

CNC Core Pin Injection Molding , HSS Metric Core Pins 0.001mm Accuracy

  • CNC Core Pin Injection Molding , HSS Metric Core Pins 0.001mm Accuracy
  • CNC Core Pin Injection Molding , HSS Metric Core Pins 0.001mm Accuracy
Place of Origin China
Brand Name KEGAO
Certification ISO 9001
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Cartons or wooden cases
Delivery Time 15-30days
Payment Terms L/C, T/T,
Supply Ability 2000PCS per month
Product Details
Material HSS HRC Standard
Advertising Die Punch Pins Size Make According To Drawings
Heat Treatment Standard Surface Treatment Make According To Drawings
Export Country Japan/USA/Europe Payment Terms Negotiable
High Light

HSS metric core pins

,

0.001mm core pin injection molding

,

CNC core pin injection molding
Leave a Message
Product Description

HSS Die Punch Pins With Mirror Polished Precision Mould Parts For Industrial


Description:

Parts Name: HSS Die Punch Pins With Mirror Polished Precision Mould Parts For Industrial Hardness: Make according to drawings
Product size: Customized/As Per Drawings Grinding accuracy: ±0.001mm



Product material:

 Japan (SKD11.SKD61.SKH51.S45C) Tolerance: 0.001mm
USA (AISA.D2.H13.P20.M2) EDM Accuracy: ±0.003mm
Germany (DIN.2379.2363.2344.2347) Grind Clear Angle Max: 0.02
ASSAB(Rigor.DIVEAR.Impax.Elmax.VANADIS4.STAVAX) EDM Angle Max: 0.02
Proce CNC→Grinding→EDM Grinding Finish Ra: 0.2
Application: Die Punch Pins EDM Finish Ra: 0.3
    Wire Cutting Finish Ra: 0.3-0.4
Processing flow: Heat treatment → CNC→Grinding→EDM→Quality inspection


Inspection Equipments:


CMM, Altimeter, Projector, Height Guage, Calipers, Hardness Tester, Micrometer,etc.


Lead Time:


7-20 days, depending on order quantity



Company Pursuit:

Advanced Technology, Lowest cost


Company Culture:



Trust, Simplicity, Risk-sharing, Quick execution



Material:



SKH9(M2) SKH55(M35) SKH59(M42) ASP30 ASP23 ASP60 and more..



Hardness:



60-62 HRC or depends on processing materials



Specification:



1. Standards: MISUMI,HASCO,DME,DAYTON

2. Size tolerance within +/-0.001mm

3. Axiality within 0.002mm

4. Roundness within 0.0015mm

5. Polishing: can make close to Ra0.4 standard is R0.8

6. Further dimensions, lengths and materials available on request

7. The punch & die can be replace when it is worn



FAQ:



Q:When can i get the quotation or the reply on your side?
A: The swift response will usually be taken within 4 hours after we got your inquiry or email.If you are very urgent,please let us know so that we will regard your inquiry priority



Q: How can you ensure the quality of the parts that we ordered?
A: Firstly,the pre-testing will be done before every step,secondly,we'll have the final checking for all the parts before the shipment,So believe that a strict quality control system will ensure you the high quality parts.


Q:What Are The Main Oversea Markets Of Meritac?
A: Currently Meritac regular oversea customers are from the US, the Uk, Italy, Germany, France and India etc


Q: If we don’t have drawing, can you make drawing for me?
A: Yes, we make the drawing of your sample and duplicate the sample.



Further Information:



Testing machine Digital Height Gauge, caliper, Coordinate measuring machine, projection machine,roughness tester, hardness tester and so on.
QC 1) Technicians self-check in production
2) Engineer spot check in production
3) QC inspects after mass production finished
Main Markets North America, South America, Eastern Europe , West Europe , North Europe,South Europe, South Asia,



If you are interested, please do not hesitate to contact us! Thank you!
